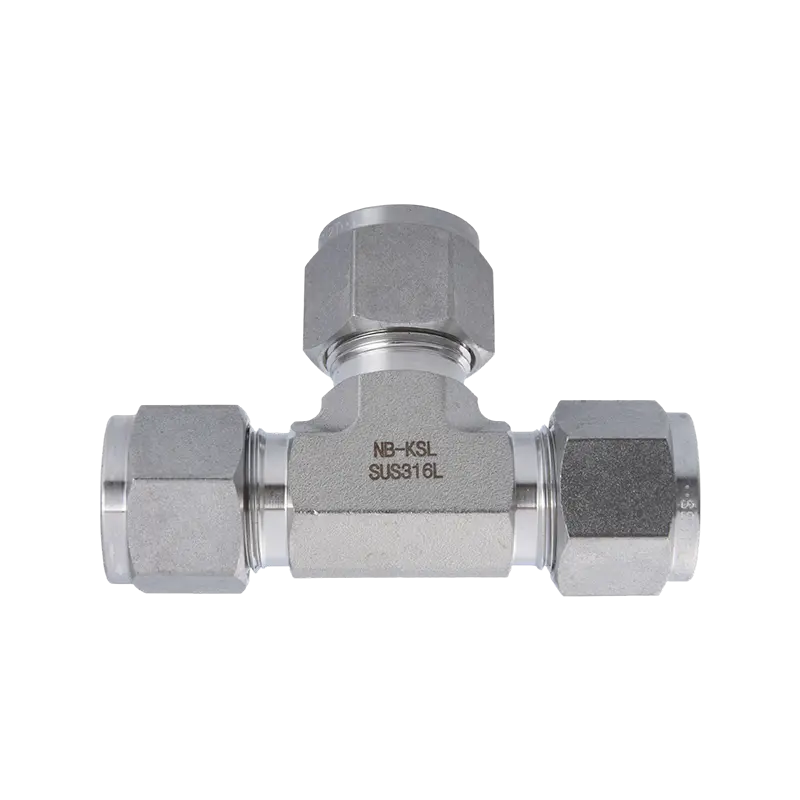

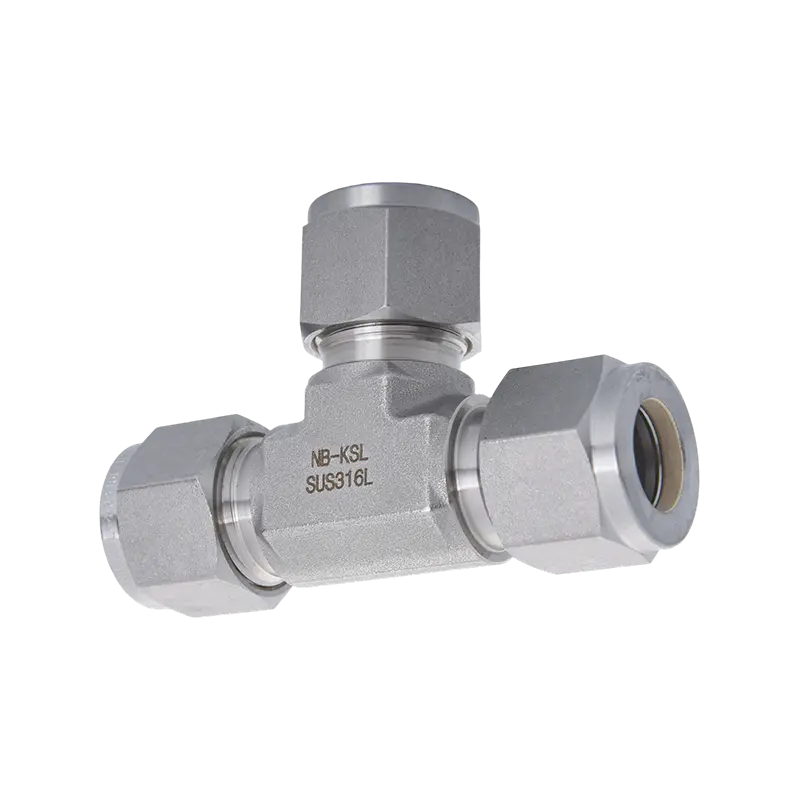

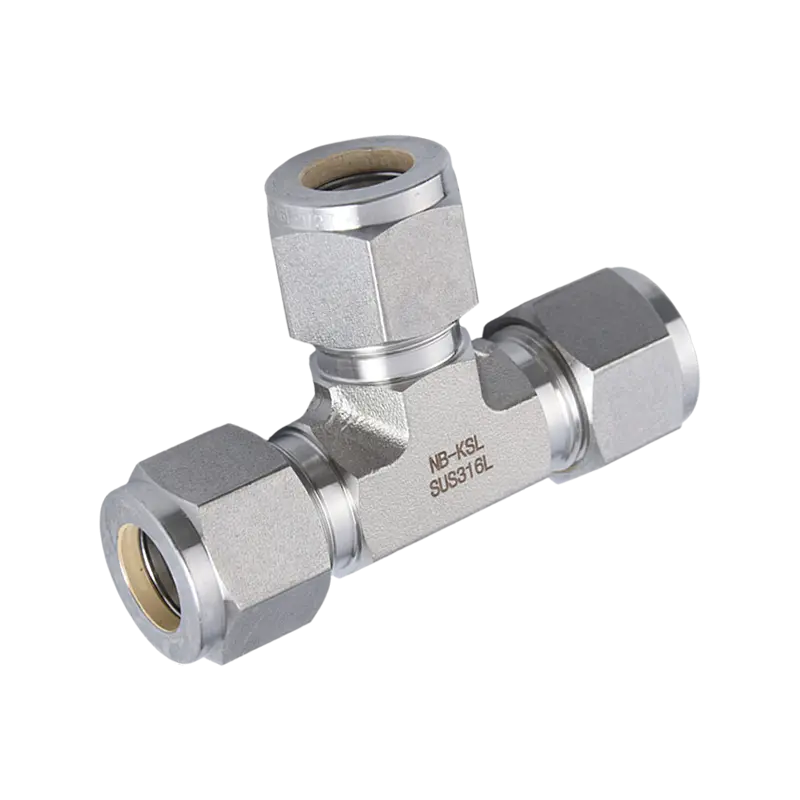

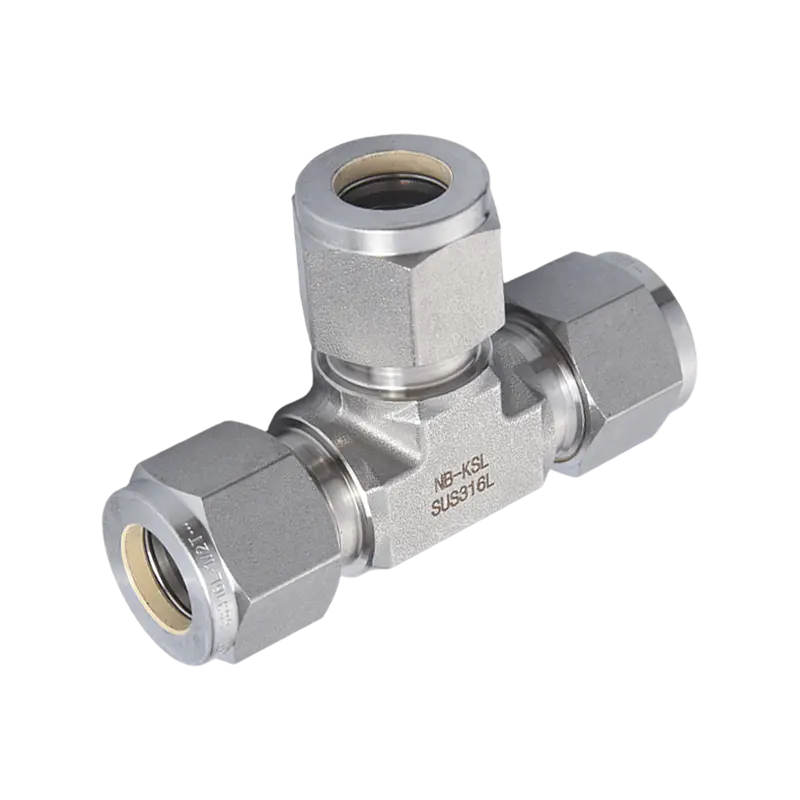

316L স্টেইনলেস স্টীল কম্প্রেশন ফিটিং টি

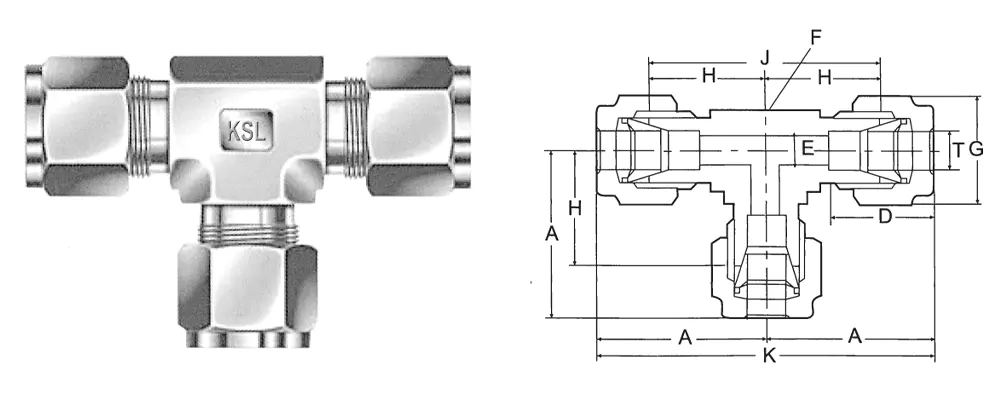

ক্যাটালগ নম্বর

টিউব O.D.

A

D

E

F

G

H

J

K

UT-3-0

3

22.7

13.5

2.4

9.5

12

15.7

31.4

45.4

UT-4-0

4

25.7

13.7

3

12.7

12

19

38

51.4

UT-6-0

6

27.4

15.8

4.8

12.7

14

19.6

392

54.8

UT-8-0

8

30.1

16.7

6

16

16

22.4

44.8

60.2

UT-10-0

10

31.5

19.6

7.9

17.5

19

23.9

47.8

63

UT-12-0

12

36.7

23.8

9.5

19

22

25.9

51.8

73.4

UT-14-0

14

38.8

24.8

11.1

24

27

28

56

77.6

UT-15-0

15

38.4

24.4

11.9

24

27

28

56

76.8

UT-16-0

16

38.4

24.4

12.7

24

27

28

56

76.8

UT-18-0

18

39.3

24.8

15.1

28

30

28.5

57

78.6

UT-20-0

20

44

25.5

15.9

32

32

33.5

67

88

UT-22-0

22

44

25.5

18.3

32

32

33.5

67

88

UT-25-0

25

47.7

31.7

21.8

34.5

38

35

70

95.4

UT-01-0

1/8

23.2

14

2.4

9.5

12

15.7

31.4

46.4

UT-02-0

1/4

27.4

15.8

4.8

12.7

14

19.6

392

54.8

UT-03-0

3/8

30.7

19.6

7.1

16

17

23.1

462

61.4

UT-04-0

1/2

36.1

23.4

10.4

19

22

25.9

52

72.2

UT-05-0

৫/৮

38.4

24.4

12.7

24

27

28

56

76.8

UT-06-0

3/4

38.9

24.4

15.7

28

30

28.5

57

77.8

UT-08-0

1"

47.7

31.7

22.4

34.5

38

35

70

95.4
