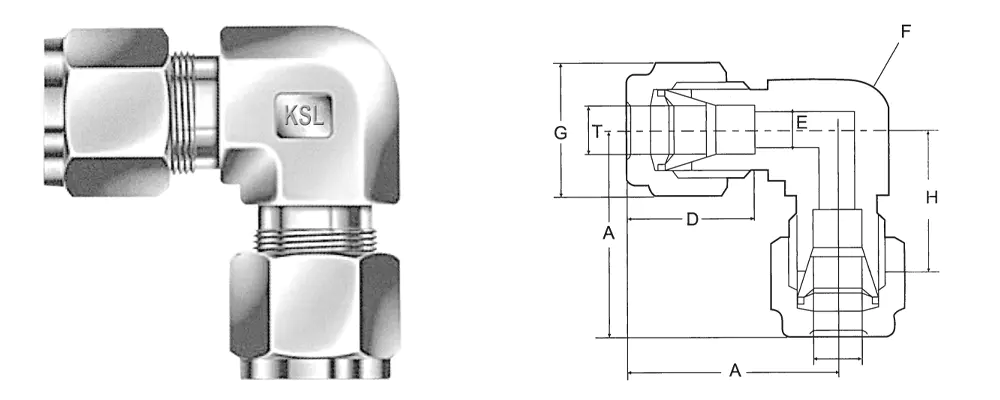

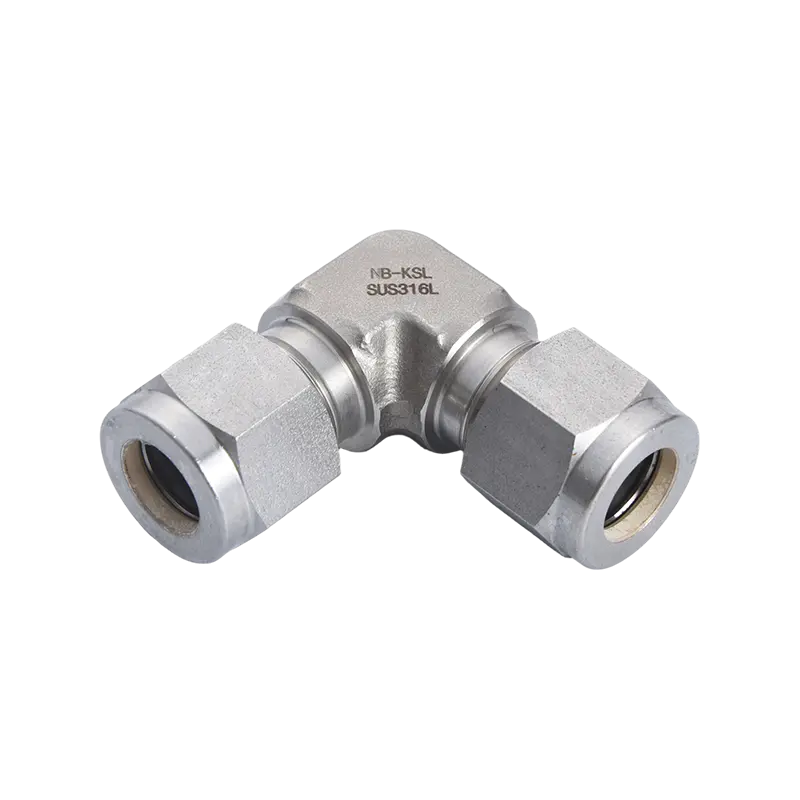

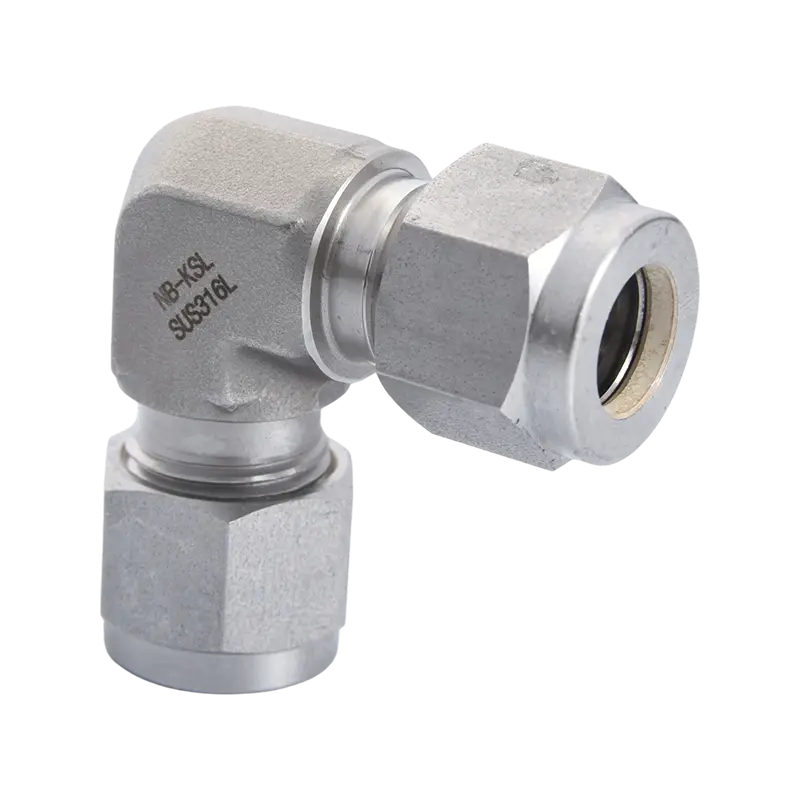

316L স্টেইনলেস স্টীল কম্প্রেশন ফিটিং কনুই

ক্যাটালগ নম্বর

টিউব O.D

A

D

E

F

G

H

UE-3-0

3

23.5

13.5

2.4

9.5

12

16.5

UE-4-0

4

25.8

13.7

3

12.7

12

19.1

UE-6-0

6

27.8

15.8

4.8

12.7

14

20

UE-8-0

8

28.7

16.7

6.4

15

16

21

UE-10-0

10

31.6

19.6

7.9

17

19

24

UE-12-0

12

36.7

23.8

9.5

21

22

25.9

UE-14-0

14

38.8

24.8

11.1

24

27

28

UE-15-0

15

38.4

24.4

11.9

24

27

28

UE-16-0

16

38.4

24.4

12.7

24

27

28

UE-18-0

18

39.3

24.8

15.1

28

30

28.5

UE-20-0

20

43

25.5

15.9

32

32

32.5

UE-22-0

22

43

25.5

18.3

32

32

32.5

UE-25-0

25

47.7

31.7

21.8

34.5

38

35

UE-01-0

1/8

24

14

2.4

9.5

12

16.5

UE-02-0

1/4

27.4

15.8

4.8

12.7

14

19.6

UE-03-0

3/8

30.7

19.6

7.1

17

17

23.1

UE-04-0

1/2

36.3

23.4

10.4

21

22

25.9

UE-05-0

৫/৮

38.4

24.4

12.7

24

27

28

UE-06-0

3/4

38.9

24.4

15.7

28

30

28.5

UE-08-0

1"

47.7

31.7

22.4

34.5

38

35
