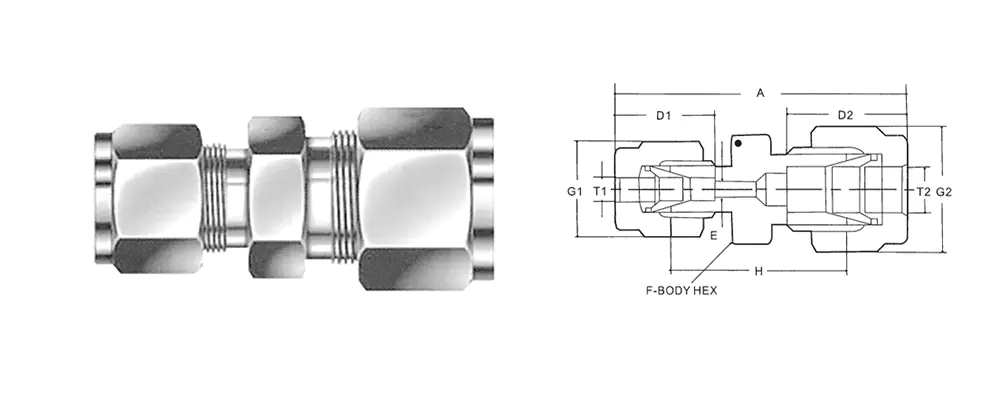

316L স্টেইনলেস স্টীল কম্প্রেশন ফিটিং রিডিউসার সোজা সংযোগকারী

টিউব O.D. ক্যাটালগ

T1

T2

NUMBER

A

D1

D2

E

জি 1

জি 2

F

H

3

6

RU-3-6

40

13.5

15.8

2.4

12

14

14

25.2

4

6

RU4-6

40.2

13.7

15.8

3

12

14

14

25.4

6

8

RU-6-8

42.9

15.8

16.7

4.8

14

16

16

27.4

6

10

RU-6-10

44.9

15.8

19.6

4.8

14

19

17

29.5

6

12

RU-6-12

48.1

15.8

23.8

4.8

14

22

19

29.5

8

10

RU-8-10

45.3

16.7

19.6

6.4

16

19

17

30

8

12

RU-8-12

48.7

16.7

23.8

6.4

16

22

19

30.2

10

12

RU-10-12

49.4

19.6

23.8

7.9

19

22

19

31

12

16

RU-12-16

52.8

23.8

24.3

9.5

22

27

24

31.8

12

18

RU-12-18

54.8

23.8

24.8

9.5

22

27

27

33.3

18

25

RU-18-25

60.6

22.8

24.8

15.1

30

38

35

38.1

20

25

RU-20-25

63.1

25.5

31.7

15.9

32

38

35

39.9

টিউব ও.ডি

T1

mm মধ্যে

T2

ক্যাটালগ নম্বর

A

D1

D2

E

জি 1

জি 2

F

H

3

1/8

RU-3-01

36.9

13.5

14

2.4

12

12

12

22.4

4

1/8

RU-401

37.6

13.7

14

2.4

12

12

12

23.4

4

1/4

RU-402

39.9

13.7

15.8

3

12

14

14

25.4

6

1/8

RU-6-01

41

15.8

14

2.4

12

14

14

25.2

6

1/4

RU-6-02

41.8

15.8

15.8

4.8

14

14

14

26.2

8

1/4

RU-8-02

42.9

16.7

15.8

4.8

14

16

14

27.4

10

1/8

RU-10-01

44.1

19.6

14

2.4

12

19

17

28.5

10

1/4

RU-10-02

44.9

19.6

15.8

4.8

14

19

17

29.5

10

3/8

RU-10-03

46.2

19.6

19.6

7.1

17

19

17

31

12

3/8

RU-12-03

49.4

23.8

19.6

7.1

17

22

22

31

12

1/2

RU-12-04

52

23.8

23.4

9.5

22

22

22

31

18

3/4

RU-18-06

54.5

24.8

24.4

15.1

30

30

27

33.3

20

3/4

RU-20-06

55.7

25.5

24.4

15.7

32

30

30

34.8

20

1"

RU-20-08

63.1

25.5

31.7

15.9

32

38

35

39.9

22

1"

RU-22-08

63.1

25.5

31.7

18.3

32

38

35

39.9
