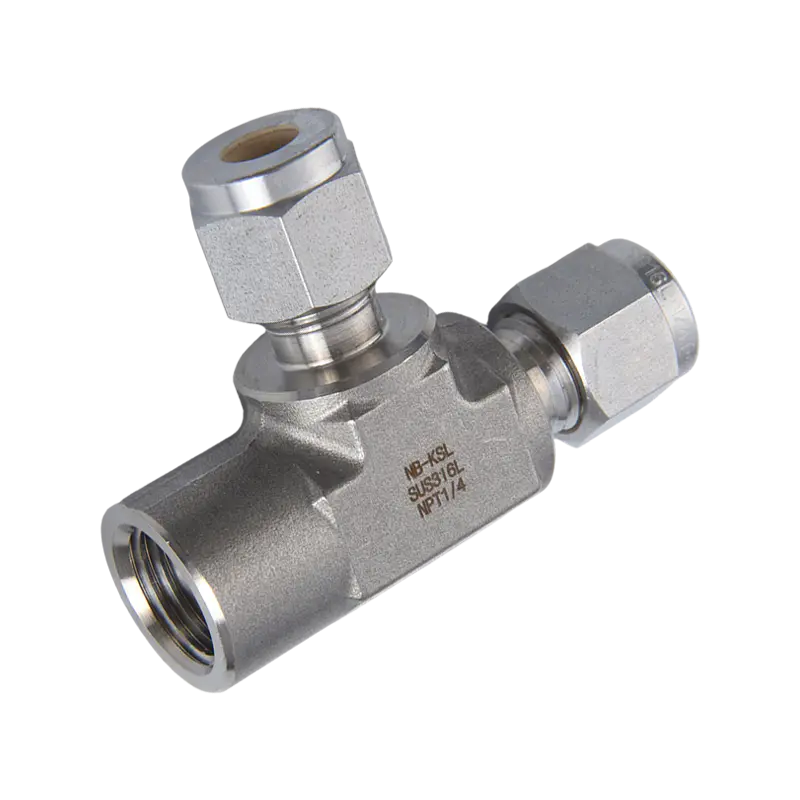

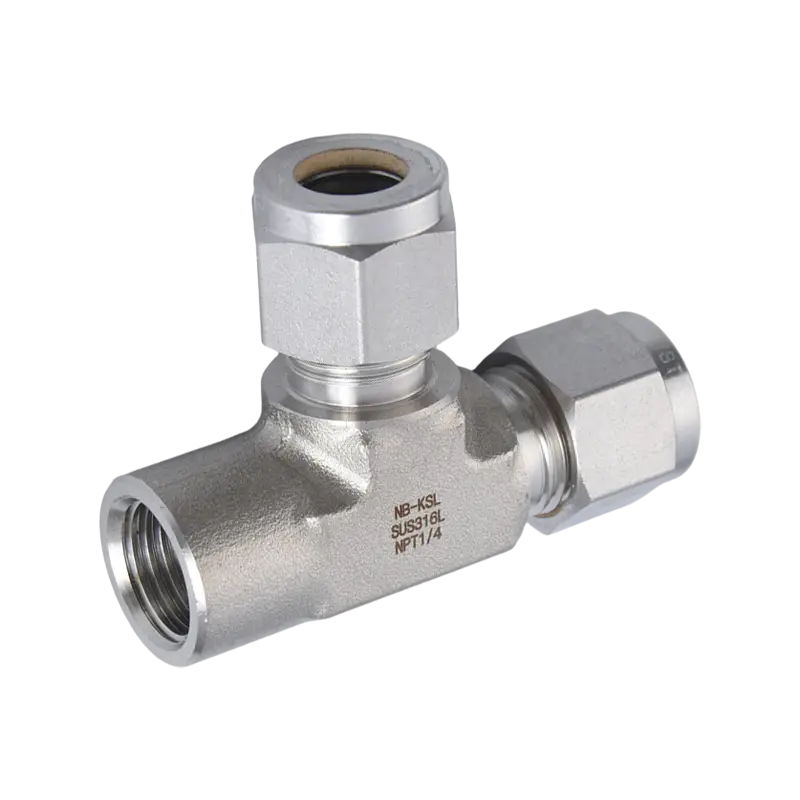

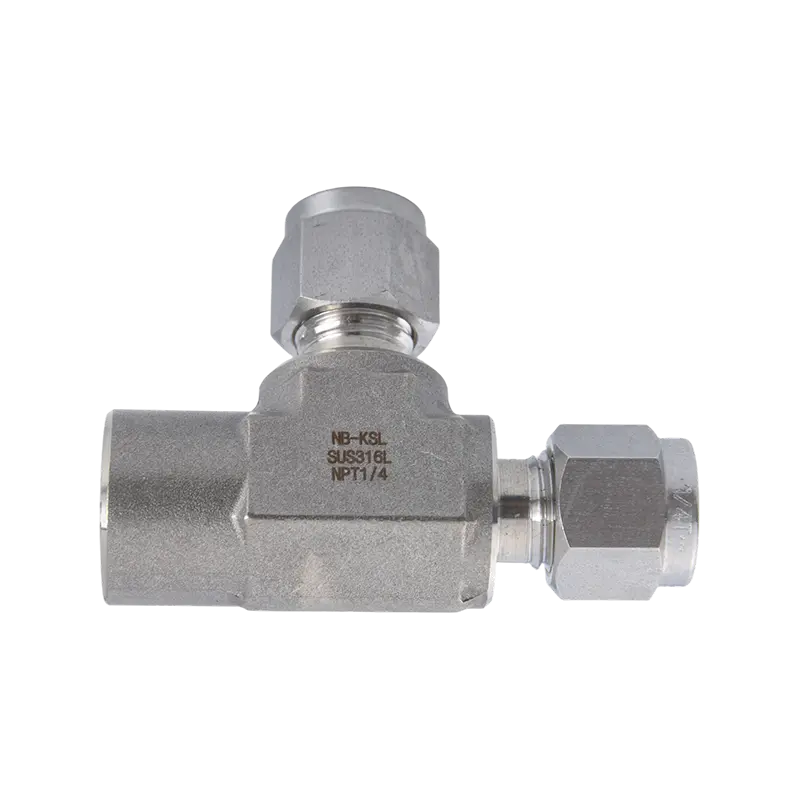

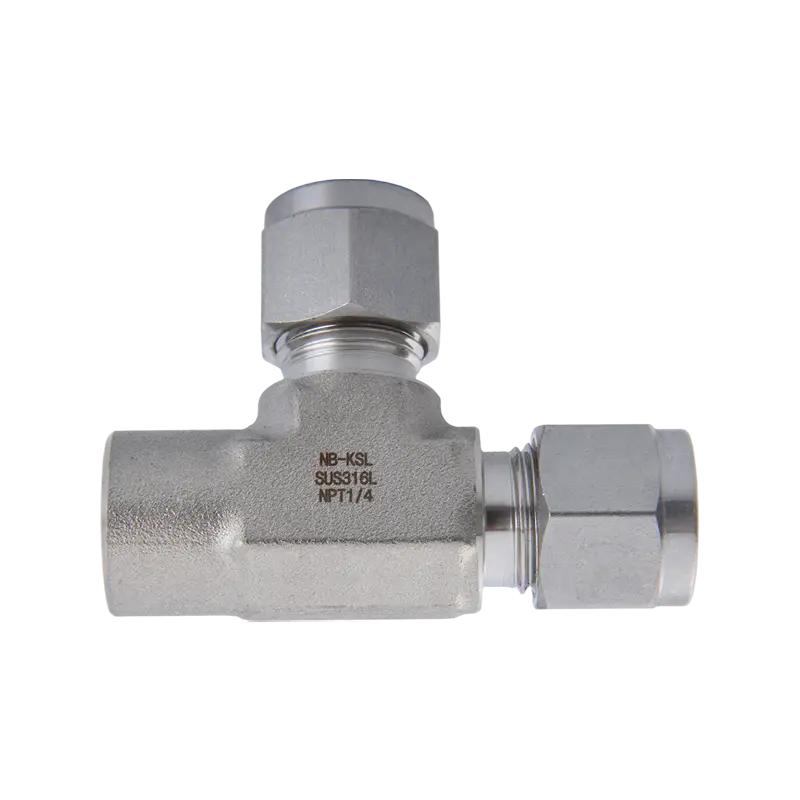

316L স্টেইনলেস স্টীল কম্প্রেশন ফিটিং অভ্যন্তরীণ থ্রেড সাইড টি

ক্যাটালগ নম্বর

টি টিউব O.D.

PT-NPT পুরুষ পাইপের আকার

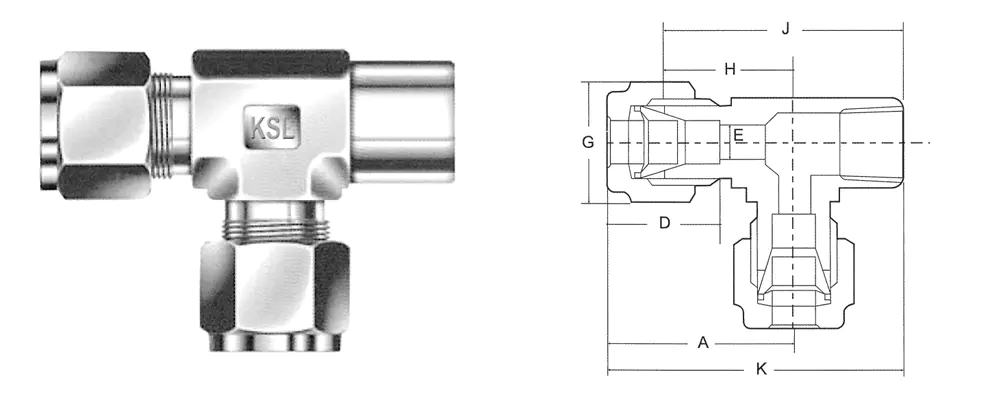

A

D

E

F

G

H

J

K

FRT-6-1

6

1/8

30.2

15.8

4.8

16

14

22.4

44.8

52.6

FRT-6-2

6

1/4

30.2

15.8

4.8

17.5

14

22.4

44.8

52.6

FRT-6-3

6

3/8

31.1

15.8

4.8

21

14

23.3

45.7

53.5

FRT-6-4

6

1/2

34.3

15.8

4.8

28

14

26.5

56.5

64.3

FRT-8-1

8

1/8

30.1

16.7

6.4

16

16

22.4

44.8

52.5

FRT-8-2

8

1/4

30.1

16.7

6.4

17.5

16

22.4

44.8

52.5

FRT-8-3

8

3/8

32

16.7

6.4

21

16

24.3

46.7

54.4

FRT-8-4

8

1/2

35.2

16.7

6.4

28

16

27.5

57.5

65.2

FRT-10-1

10

1/8

31.5

19.6

7.9

17.5

19

23.9

46.3

53.9

FRT-10-2

10

1/4

31.5

19.6

7.9

17.5

19

23.9

46.3

53.9

FRT-10-3

10

3/8

32.9

19.6

7.9

21

19

25.3

47.7

55.3

FRT-10-4

10

1/2

36.6

19.6

7.9

28

19

28.5

58.5

66.6

FRT-12-1

12

1/8

36.7

23.8

8

19

22

25.9

48.3

59.1

FRT-12-2

12

1/4

36.7

23.8

9.5

19

22

25.9

48.3

59.1

FRT-12-3

12

3/8

36.1

23.8

9.5

21

22

25.3

47.7

58.5

FRT-12-4

12

1/2

36.7

23.8

9.5

28

22

28.5

58.5

66.7

FRT-12-6

12

3/4

43.3

23.8

9.5

32

22

32.5

65.5

76.3

FRT-14-3

14

3/8

38.8

24.8

11.1

24

27

28

55

65.8

FRT-14-4

14

1/2

39.3

24.8

11.1

28

27

28.5

58.5

69.3

FRT-14-6

14

3/4

43.3

24.8

11.1

32

27

32.5

65.5

76.3

FRT-15-3

15

3/8

38.4

24.4

11.9

24

27

28

55

65.4

FRT-15-4

15

1/2

38.9

24.4

11.9

28

27

28.5

58.5

68.9

FRT-15-6

15

3/4

42.9

24.4

11.9

32

27

32.5

65.5

75.9

FRT-16-3

16

3/8

38.4

24.4

12.7

24

27

28

55

65.4

FRT-16-4

16

1/2

38.9

24.4

12.7

28

27

28.5

58.5

68.9

FRT-16-6

16

3/4

42.9

24.4

12.7

32

27

32.5

65.5

75.9

FRT-18-3

18

3/8

39.3

24.8

15.1

28

30

28.5

55.5

66.3

FRT-18-4

18

1/2

39.3

24.8

15.1

28

30

28.5

58.5

66.3

FRT-18-6

18

3/4

43.3

24.8

15.1

32

30

32.5

65.5

76.3

FRT-20-4

20

1/2

44

25.5

15.9

32

32

33.5

66.5

77

FRT-20-6

20

3/4

44

25.5

15.9

32

32

33.5

66.5

77

FRT-22-4

22

1/2

44

25.5

18.3

32

32

33.5

66.5

77

FRT-22-6

22

3/4

44

25.5

18.3

32

32

33.5

66.5

77

FRT-25-4

25

1/2

47.7

31.7

18.5

34.5

38

35

70

82.7

FRT-25-6

25

3/4

47.7

31.7

21.8

34.5

38

35

70

82.7

FRT-02-1

1/4

1/8

30.2

15.8

4.8

16

14

22.4

44.8

52.6

FRT-02-2

1/4

1/4

30.2

15.8

4.8

17.5

14

22.4

44.8

52.6

FRT-02-3

1/4

3/8

31.1

15.8

4.8

21

14

23.3

45.7

53.5

FRT-02-4

1/4

1/2

34.3

15.8

4.8

28

14

26.5

56.5

64.3

FRT-03-1

3/8

1/8

30.7

19.6

7.1

16

17

23.1

45.5

53.1

FRT-03-2

3/8

1/4

31.5

19.6

7.1

17.5

17

23.9

46.3

53.9

FRT-03-3

3/8

3/8

32.9

19.6

7.1

21

17

25.3

47.7

55.3

FRT-03-4

3/8

1/2

36.1

19.6

7.1

28

17

28.5

58.5

66.1

FRT-04-1

1/2

1/8

36.1

23.4

8

19

22

25.9

48.3

58.5

FRT-04-2

1/2

1/4

36.1

23.4

10.4

19

22

25.9

48.3

58.5

FRT-04-3

1/2

3/8

35.5

23.4

10.4

21

22

25.3

47.7

57.9

FRT-04-4

1/2

1/2

38.7

23.4

10.4

28

22

28.5

58.5

68.7

FRT-04-6

1/2

3/4

38.4

23.4

10.4

32

22

32.5

65.5

71.4

FRT-06-4

3/4

1/2

38.4

24.4

15.7

28

30

28.5

58.5

68.4

FRT-06-6

3/4

3/4

42.9

24.4

15.7

32

30

32.5

65.5

75.9

FRT-08-6

1"

3/4

47.7

31.7

22.4

34.5

38

35

70

82.7
