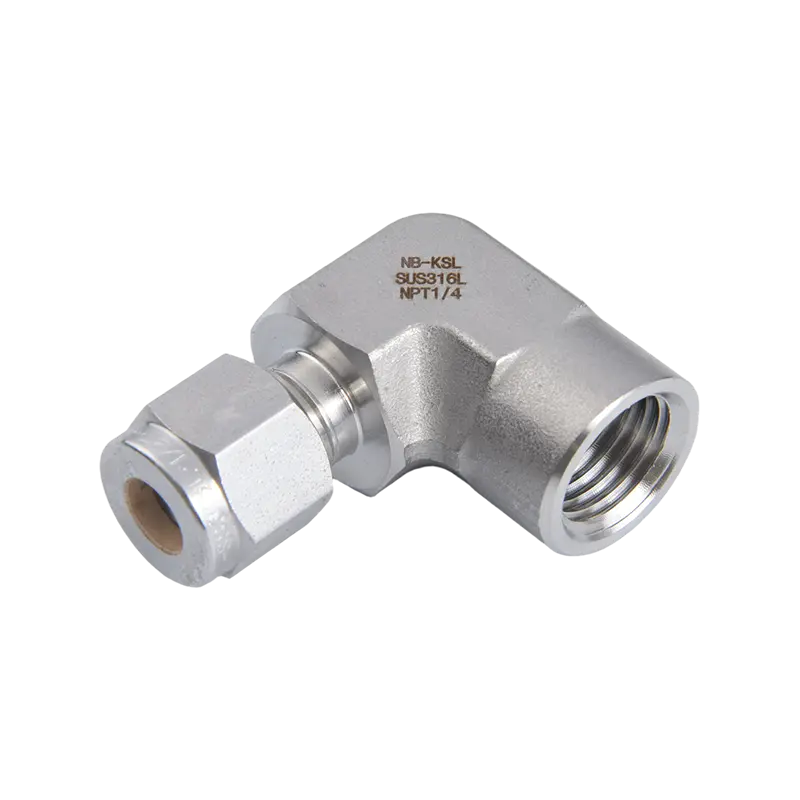

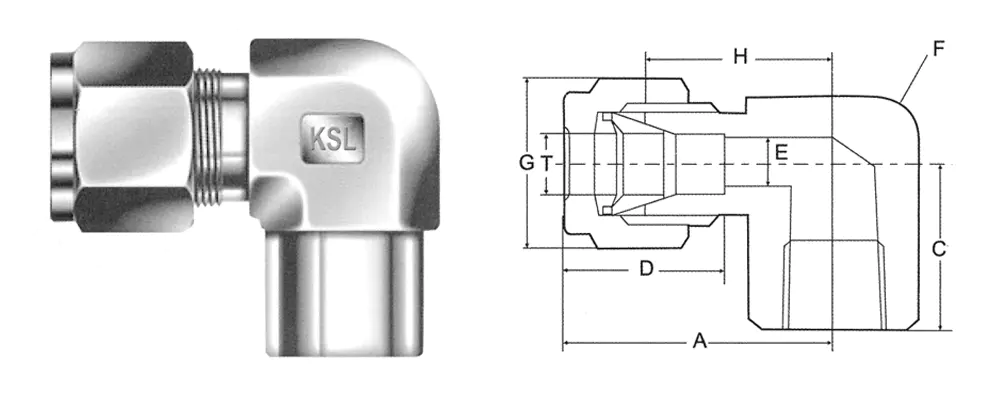

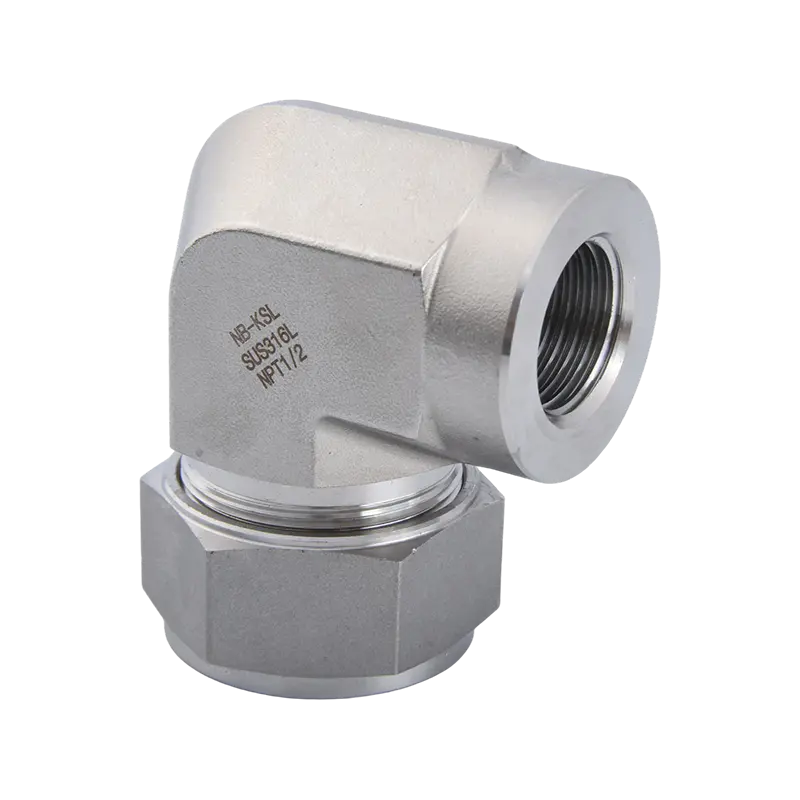

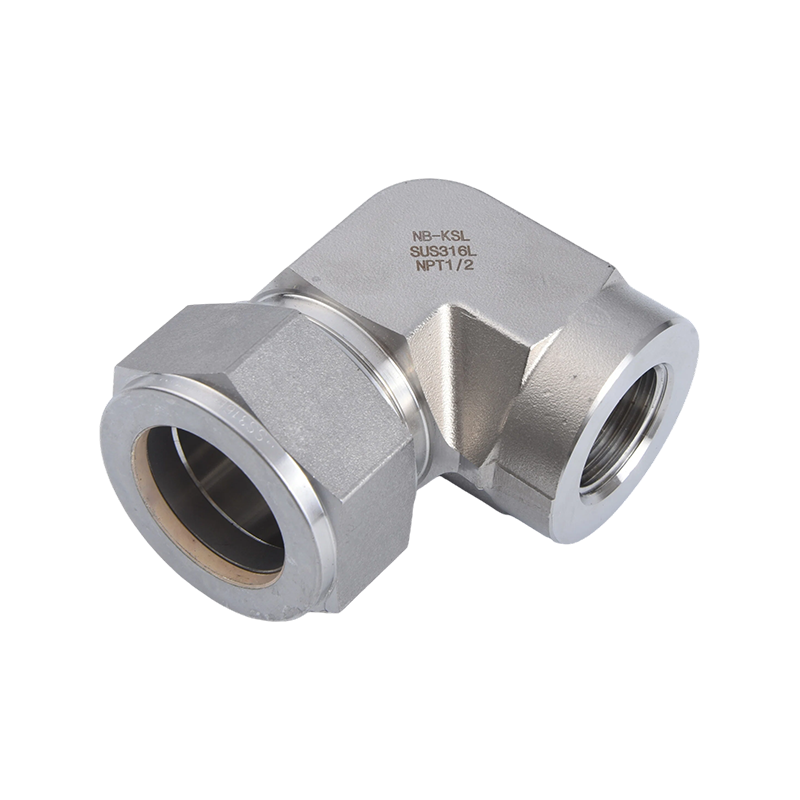

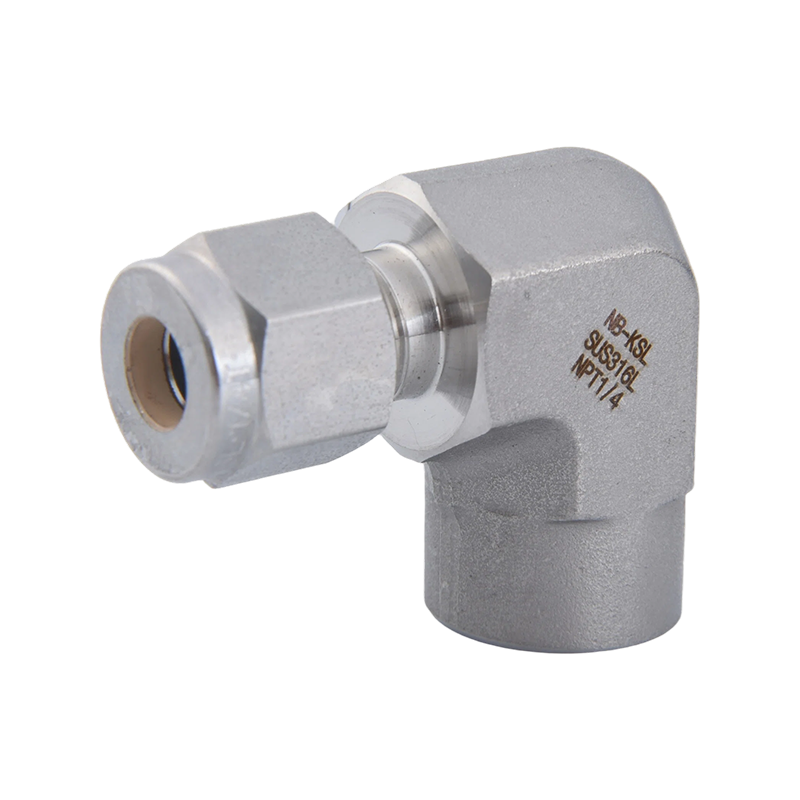

কম্প্রেশন ফিটিং অভ্যন্তরীণ থ্রেড কনুই

ক্যাটালগ নম্বর

টি টিউব O.D.

PT-NPT পুরুষ পাইপের আকার

A

C

D

E

E2

F

G

H

এফই-০৩-০৩

6

1/8

27.4

19.1

15.8

4.8

8

15

14

19.6

এফই-০৩-০২

6

1/4

30.2

22.4

15.8

4.8

11

17

14

22.4

এফই-০৩-০৩

6

3/8

31.7

22.4

15.8

4.8

15

21

14

23.9

এফই-০৩-০৪

6

1/2

35.3

28.5

15.8

4.8

18.5

28

14

27.5

FE-8-1

8

1/8

28.7

19.1

16.7

6.4

8

15

16

21

FE-8-2

8

1/4

30.1

22.4

16.7

6.4

11

17

16

23

এফই-০৮-০৩

8

3/8

31.7

22.4

16.7

6.4

15

21

16

24

FE-8-4

8

1/2

35.7

28.5

16.7

6.4

18.5

28

16

27.5

FE-10-1

10

1/8

31.6

21

19.6

7.9

8

17

19

24

FE-10-2

10

1/4

31.6

22.4

19.6

7.9

11

17

19

24

FE-10-3

10

3/8

32.6

22.4

19.6

7.9

15

21

19

25

FE-10-4

10

1/2

36.1

28.5

19.6

7.9

18.5

28

19

28.5

FE-12-1

12

1/8

36.7

22.4

23.8

9.5

8

21

22

25.9

FE-12-2

12

1/4

36.7

22.4

23.8

9.5

11

21

22

25.9

FE-12-3

12

3/8

36.7

22.4

23.8

9.5

15

21

22

25.9

FE-12-4

12

1/2

39.3

28.5

23.8

9.5

18.5

28

22

28.5

FE-12-6

12

3/4

42.8

33.5

23.8

9.5

21.8

32

22

32

FE-14-3

14

3/8

38.8

28

24.8

11.1

15

24

27

28

FE-14-4

14

1/2

39.3

28.5

24.8

11.1

18.5

28

27

28.5

FE-14-6

14

3/4

42.8

33.5

24.8

11.1

21.8

32

27

32

FE-15-3

15

3/8

38.4

28

24.4

11.9

15

24

27

28

FE-15-4

15

1/2

38.9

28.5

24.4

11.9

18.5

28

27

28.5

FE-15-6

15

3/4

42.4

33.5

24.4

11.9

21.8

32

27

32

FE-16-3

16

3/8

38.4

28

24.4

12.7

12.7

24

27

28

FE-16-4

16

1/2

38.9

28.5

24.4

12.7

18.5

28

27

28.5

FE-16-6

16

3/4

42.4

33.5

24.4

12.7

21.8

32

27

32

FE-18-3

18

3/8

39.3

25.4

24.8

15.1

15

28

30

28.5

FE-18-4

18

1/2

39.3

28.4

24.8

15.1

18.5

28

30

28.5

FE-18-6

18

3/4

42.8

33.5

24.8

15.1

21.8

32

30

32

FE-20-4

20

1/2

43

33.5

25.5

15.9

18.5

32

32

32.5

FE-20-6

20

3/4

43

33.5

25.5

15.9

21.8

32

32

32.5

FE-22-4

22

1/2

43

33.5

25.5

18.3

18.5

32

32

32.5

FE-22-6

22

3/4

43

33.5

25.5

18.3

21.8

32

32

32.5

FE-25-4

25

1/2

47.7

35

31.7

21.8

18.5

34.5

38

35

FE-25-6

25

3/4

47.7

35

31.7

21.8

21.8

34.5

38

35

FE-02-1

1/4

1/8

27.4

19.1

15.8

4.8

8

15

14

19.6

এফই-০২-২

1/4

1/4

30.2

22.4

15.8

4.8

11

17

14

22.4

FE-02-3

1/4

3/8

30.2

23.9

15.8

4.8

15

21

14

22.4

এফই-০২-৪

1/4

1/2

36.3

27.5

15.8

4.8

18.5

28

14

28.5

FE-03-1

3/8

1/8

30.7

19.8

19.6

7.1

8

17

17

23.1

এফই-০৩-২

3/8

1/4

31.6

22.4

19.6

7.1

11

17

17

24

FE-03-3

3/8

3/8

32.6

22.4

19.6

7.1

15

21

17

25

FE-03-4

3/8

1/2

36.1

28.5

19.6

7.1

18.5

28

17

28.5

FE-04-1

1/2

1/8

36.1

22.4

23.4

10.4

8

21

22

25.9

এফই-০৪-২

1/2

1/4

36.1

22.4

23.4

10.4

11

21

22

25.9

FE-04-3

1/2

3/8

36.1

22.4

23.4

10.4

15

21

22

25.9

FE-04-4

1/2

1/2

38.7

28.5

23.4

10.4

18.5

28

22

28.5

FE-04-6

1/2

3/4

42.2

33.5

23.4

10.4

21.8

32

22

32

FE-05-6

৫/৮

1/2

42.4

33.5

24.4

12.7

21.8

32

27

32

FE-06-4

3/4

3/4

38.9

28.4

24.4

15.7

18.5

28

30

28.5

FE-06-6

3/4

3/4

42.4

33.5

24.4

15.7

21.8

32

30

32

FE-08-6

1"

3/4

47.7

35

31.7

22.4

22.4

34.5

38

35
