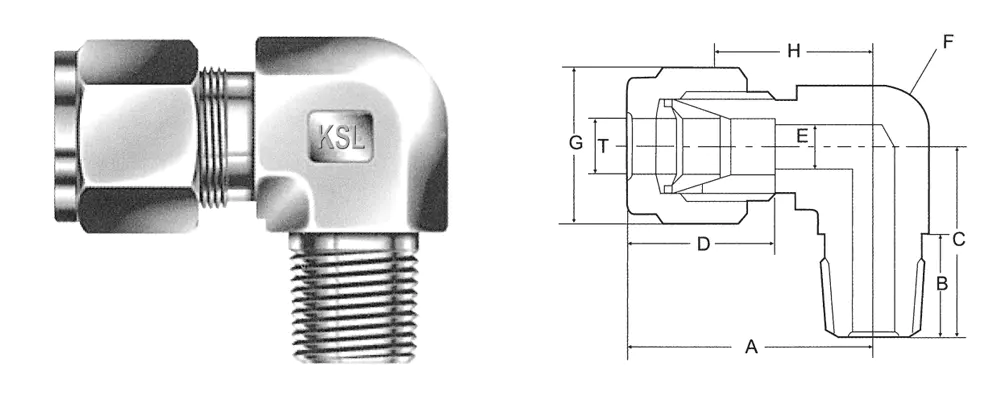

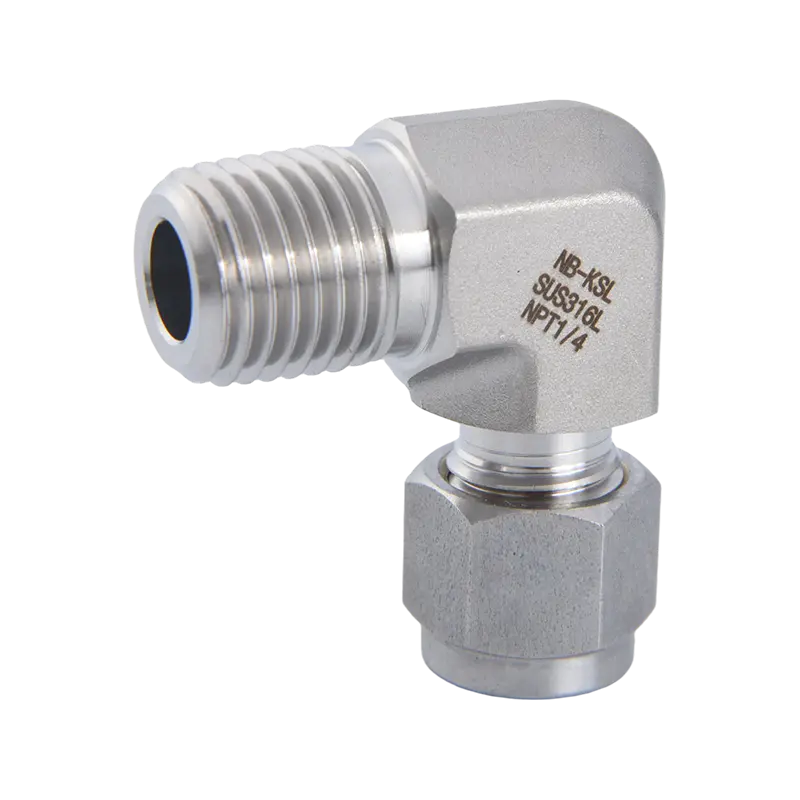

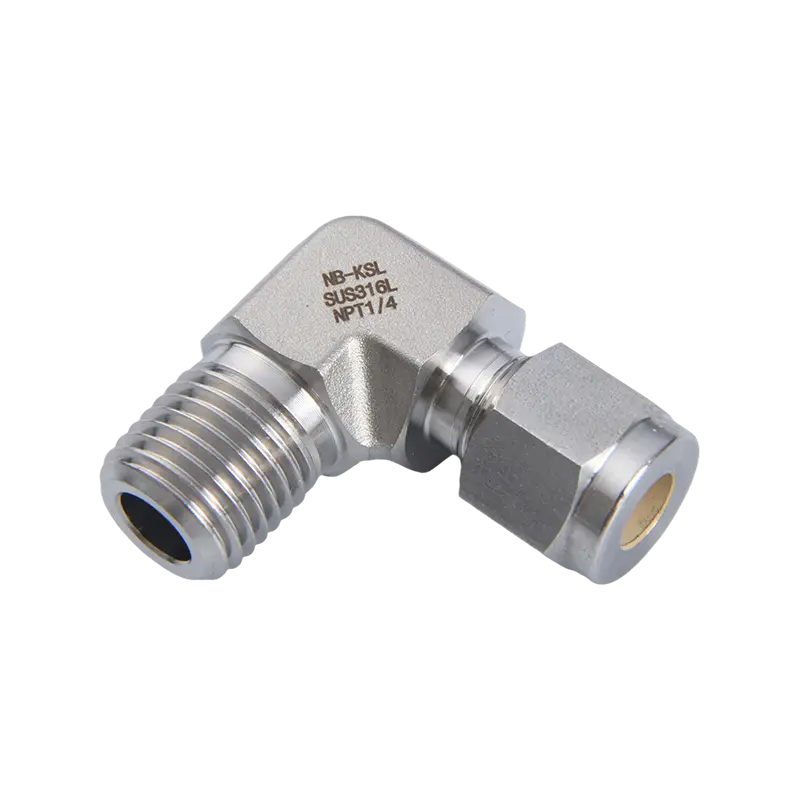

316L স্টেইনলেস স্টীল কম্প্রেশন ফিটিং বহিরাগত থ্রেড কনুই

ক্যাটালগ নম্বর

টি টিউব O.D.

PT-NPT পুরুষ পাইপের আকার

A

B

C

D

E

F

K

G

H

এমই-০৩-০১৩৭৭৭৭৭৭

3

1/8

25.6

10

19.1

13.5

2.4

12.7

4.8

12

18.6

আমি-3-2

3

1/4

25.6

14

23.2

13.5

2.4

15

7.1

12

18.6

আমি-4-1

4

1/8

25.8

10

19.1

13.7

3

12.7

4.8

12

19.1

আমি-4-2

4

1/4

25.8

14

23.2

13.7

3

15

7.1

12

19.1

আমি-6-1

6

1/8

27.4

10

19.1

15.8

4.8

12.7

4.8

14

19.6

আমি-6-2

6

1/4

27.4

14

23.2

15.8

4.8

15

7.1

14

19.6

এমই-০২-০৩১৩৩৩৩০

6

3/8

302

14

26

15.8

4.8

17.5

9.5

14

22.4

আমি-6-4

6

1/2

32.2

19

33

15.8

4.8

20.6

11.9

14

24.4

আমি-8-1

8

1/8

29

10

21.1

16.7

6.4

15

4.8

16

21.3

আমি-8-2

8

1/4

29

14

23.2

16.7

6.4

15

7.1

16

21.3

আমি-8-3

8

3/8

30.8

14

26

16.7

6.4

17.5

9.5

16

23.1

আমি-8-4

8

1/2

32.8

19

33

16.7

6.4

20.6

11.9

16

25.1

আমি-10-1

10

1/8

31.5

10

21.9

19.6

7.9

17

4.8

19

23.9

আমি-10-2

10

1/4

31.5

14

26

19.6

7.9

17.5

7.1

19

23.9

আমি-10-3

10

3/8

31.5

14

26

19.6

7.9

17.5

9.5

19

23.9

আমি-10-4

10

1/2

33.5

19

33

19.6

7.9

20.6

11.9

19

25.9

আমি-12-1

12

1/8

36.7

10

25.7

23.8

9.5

21

4.8

22

25.9

ME-12-2

12

1/4

36.7

14

28

23.8

9.5

20.6

7.1

22

25.9

ME-12-3

12

3/8

36.7

14

28

23.8

9.5

20.6

9.5

22

25.9

ME-12-4

12

1/2

36.7

19

33

23.8

9.5

20.6

11.9

22

25.9

ME-12-6

12

3/4

40.5

19

38.8

23.8

9.5

28

15.9

22

29.7

ME-12-8

12

1"

45.6

22

46.5

23.8

9.5

34.5

21.5

22

34.8

ME-14-3

14

3/8

38.7

14

29

24.8

11.1

23

9.5

27

27.9

ME-14-4

14

1/2

38.7

17

32

24.8

11.1

23

11.9

27

27.9

ME-14-6

14

3/4

40.5

19

38.8

24.8

11.1

28

15.9

27

29.7

ME-15-3

15

3/8

38.3

14

29

24.4

11.9

23

9.5

27

27.9

ME-15-4

15

1/2

38.3

17

32

24.4

11.9

23

11.9

27

27.9

ME-15-6

15

3/4

40.1

19

38.8

24.4

11.9

28

15.9

27

29.7

ME-16-3

16

3/8

38.3

14

29

24.4

12.7

23

9.5

27

27.9

ME-16-4

16

1/2

38.3

17

32

24.4

12.7

23

11.9

27

27.9

ME-16-6

16

3/4

40.1

19

38.8

24.4

12.7

28

15.9

27

29.7

ME-18-3

18

3/8

39.3

13.5

30

24.8

15.1

28

9.5

30

28.5

ME-18-4

18

1/2

40.5

17

36.8

24.8

15.1

28

11.9

30

29.7

ME-18-6

18

3/4

40.5

19

38.8

24.8

15.1

28

15.9

30

29.7

ME-20-4

20

1/2

42.5

19

38.5

25.5

15.9

32

11.9

32

32

ME-20-6

20

3/4

42.5

19

38.5

25.5

15.9

32

15.9

32

32

ME-22-4

22

1/2

42.5

19

38.5

25.5

18.3

32

11.9

32

32

ME-22-6

22

3/4

42.5

19

38.5

25.5

18.3

32

15.9

32

32

ME-22-8

22

1"

46

22

46.5

25.5

18.3

34.5

21.5

32

35.5

ME-25-4

25

1/2

49.5

19

41.7

31.7

21.8

34.5

11.9

38

36.8

ME-25-6

25

3/4

49.5

19

41.7

31.7

21.8

34.5

15.9

38

36.8

ME-25-8

25

1

49.5

22

46.5

31.7

21.8

34.5

21.5

38

36.8

ক্যাটালগ নম্বর

টি টিউব O.D.

PT-NPT পুরুষ পাইপের আকার

A

B

C

D

E

F

K

G

H

ME- 01-1

1/8

1/8

26.1

10

19.1

14

2.4

12.7

4.8

12

18.6

ME-01-2

1/8

1/4

26.1

14

23.2

14

2.4

15

7.1

12

18.6

ME- 015- 1

3/16

1/8

25.8

10

19.1

13.7

3

12.7

4.8

12

19.1

ME-015-2

3/16

1/4

25.8

14

23.2

13.7

3

15

7.1

12

19.1

ME- 02- 1

1/4

1/8

27.4

10

19.1

15.8

4.8

12.7

4.8

14

19.6

ME-02-2

1/4

1/4

27.4

14

23.2

15.8

4.8

15

7.1

14

19.6

ME- 02- 3

1/4

3/8

30.2

14

26

15.8

4.8

17.5

9.5

14

22.4

ME-02-4

1/4

1/2

32.2

19

33

15.8

4.8

20.6

11.9

14

24.4

ME-03- 1

3/8

1/8

28.9

10

21.1

19.6

7.1

15

4.8

17

21.3

ME-03-2

3/8

1/4

28.9

14

24.2

19.6

7.1

15

7.1

17

21.3

ME-03- 3

3/8

3/8

31.5

14

26

19.6

7.1

17.5

9.5

17

23.9

ME-03-4

3/8

1/2

33.5

19

33

19.6

7.1

20.6

11.9

17

25.9

ME- 04-1

1/2

1/8

36.1

10

25.7

23.4

10.4

20.6

4.8

22

25.9

ME-04-2

1/2

1/4

36.1

14

28

23.4

10.4

20.6

7.1

22

25.9

ME- 04-3

1/2

3/8

36.1

14

28

23.4

10.4

20.6

9.5

22

25.9

ME-04-4

1/2

1/2

36.1

19

33

23.4

10.4

20.6

11.9

22

25.9

ME-04-6

1/2

3/4

39.9

19

38.8

23.4

10.4

28

15.9

22

29.7

ME-04-8

1/2

1 "

45

22

46.5

23.4

10.4

34.5

21.5

22

34.8

ME- 05- 3

৫/৮

3/8

38.3

14

29

24.4

12.7

23

9.5

27

27.9

ME-05-4

৫/৮

1/2

38.3

17

32

24.4

12.7

23

11.9

27

27.9

ME- 05- 6

৫/৮

3/4

40.1

19

38.8

24.4

12.7

28

15.9

27

29.7

ME-06-3

3/4

3/8

40.1

14

33.8

24.4

15.7

28

9.5

30

29.7

ME- 06- 4

3/4

1/2

40.1

17

36.8

24.4

15.7

28

11.9

30

29.7

ME-06-6

3/4

3/4

40.1

19

38.8

24.4

15.7

28

15.9

30

29.7

ME- 06-8

3/4

1 "

45.2

22

46.5

24.4

15.7

34.5

21.5

30

34.8

ME-08-4

1 "

1/2

49.5

19

41.7

31.7

22.4

34.5

11.9

38

36.8

ME- 08-6

1 "

3/4

49.5

19

41.7

31.7

22.4

34.5

15.9

38

36.8

ME-08-8

1 "

1 "

49.5

22

46.5

31.7

22.4

34.5

21.5

38

36.8

ক্যাটালগ নম্বর

টি টিউব O.D.

জি-এনপিটি পুরুষ পাইপের আকার

A

B

C

D

E

F

K

G

H

ME- 01-01-জি

1/8

1/8

26.1

7.1

20.1

14

2.4

15

4.8

12

18.6

ME-02-01-G

1/4

1/8

27.4

7.1

20.1

15.8

4.8

15

4.8

14

19.6

ME- 02-02-জি

1/4

1/4

30.7

11.2

25.2

15.8

4.8

17.5

6.4

14

22.9

ME-02-03-G

1/4

3/8

31.7

12

25.9

15.8

4.8

21

7.9

14

23.9

ME- 02-04-জি

1/4

1/2

35.5

14.2

37.2

15.8

4.8

28

11.9

14

27.7

ME-03-01-G

3/8

1/8

28.9

7.1

20.1

19.6

7.1

15

4.8

17

21.3

ME- 03-06-জি

3/8

3/4

42.1

15.7

41.7

19.6

7.1

35

15.9

17

34.5

ME-04-02-G

1/2

1/4

36.1

11.2

26

23.4

10.4

21

13.2

22

25.9

M3-04-03- G

1/2

3/8

36.1

11.2

25.9

23.4

10.4

21

7.9

22

25.9

ME-04-04-G

1/2

1/2

39.9

14.2

37.2

23.4

10.4

28

11.9

22

29.7

ME-08-06-G

1 "

3/4

49.5

15.7

41.7

31.7

22.4

35

15.9

38

36.8
