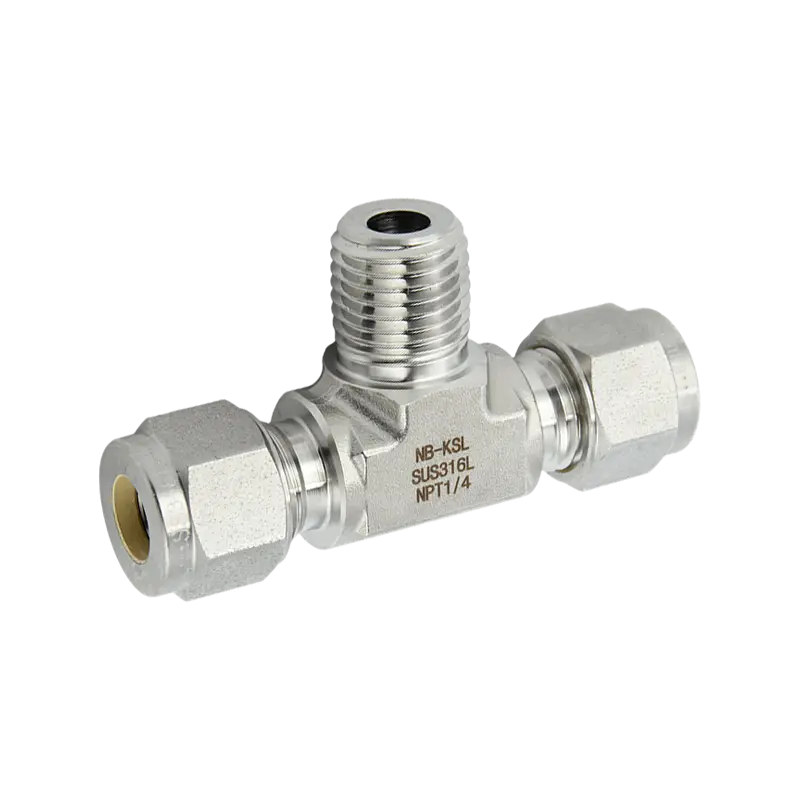

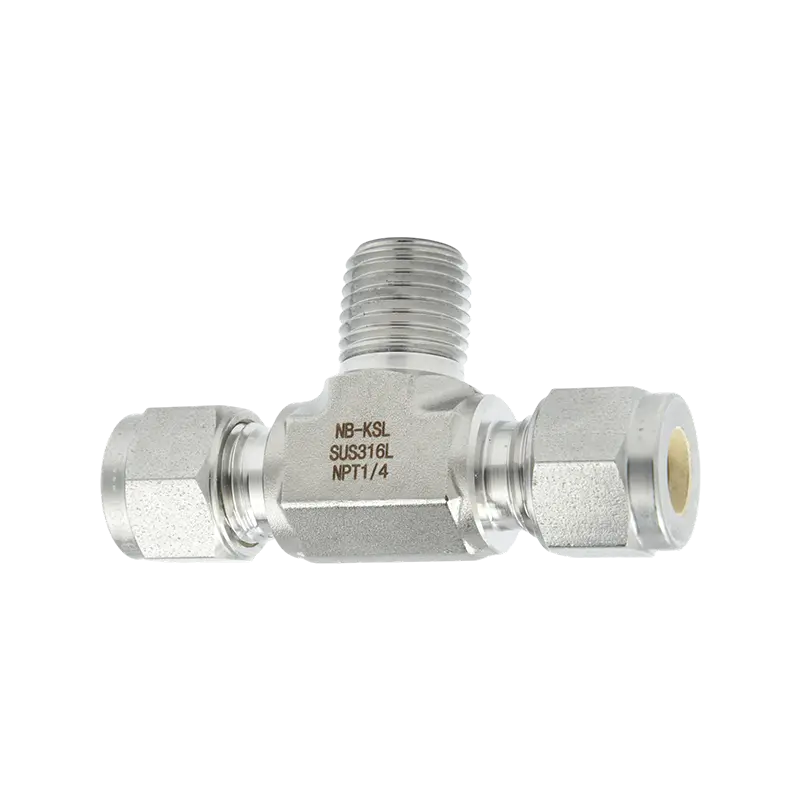

316L স্টেইনলেস স্টীল কম্প্রেশন ফিটিং বহিরাগত থ্রেড শাখা টি

ক্যাটালগ নম্বর

টি টিউব O.D.

PT-NPT পুরুষ পাইপের আকার

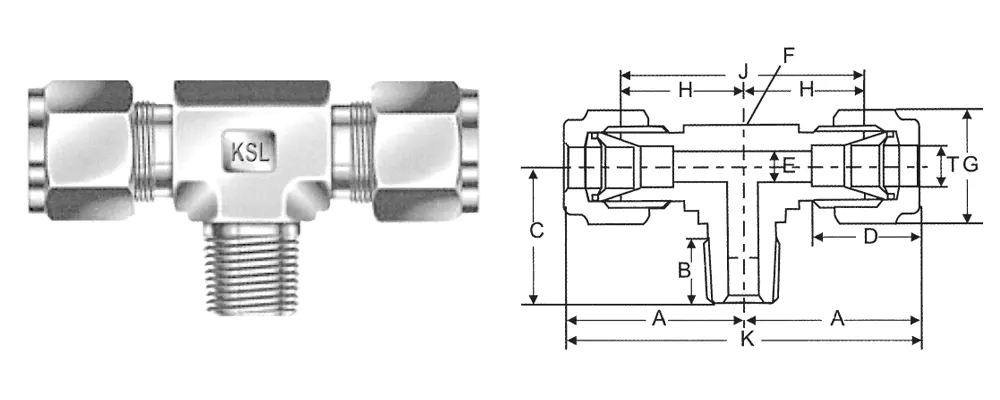

A

B

C

D

E

F

G

H

J

K

MBT-4-1

4

1/বি

25.7

10

19.6

13.7

3

12.7

12

19

38

51.4

এমবিটি-4-2

4

1/4

27.5

14

24

13.7

3

16

12

20.8

41.6

55

MBT-6-1

6

1/8

274

10

19.6

15.8

4.8

12.7

14

19.6

39.2

54.8

MBT-6-2

6

1/4

292

14

24

15.8

4.8

16

14

21.4

42.8

58.4

MBT-6-3

6

3/বি

302

14

24.5

15.8

4.8

17.5

14

22.4

44.8

60.4

MBT-6-4

6

12

31.7

19

33

15.8

4.8

20.6

14

23.9

47.8

63.4

MBT-8-1

8

1/8

30.1

10

21

16.7

6

16

16

22.4

44.8

602

এমবিটি-8-2

8

1/4

30.1

14

24

16.7

6

16

16

22.4

44.8

602

MBT-8-3

8

3/বি

30.8

14

24.5

16.7

6

17.5

16

23.1

46.2

61.6

এমবিটি-8-4

8

1/2

32.6

19

33

16.7

6

20.6

16

24.9

49.8

652

MBT-10-1

10

1/8

33.5

10

22.5

19.6

7.9

17.5

19

25.9

51.8

67

MBT-10-2

10

1/4

33.5

14

26.5

19.6

7.9

17.5

19

25.9

51.8

67

MBT-10-3

10

3/বি

33.5

14

26.5

19.6

7.9

17.5

19

25.9

51.8

67

MBT-10-4

10

12

33.5

19

33

19.6

7.9

20.6

19

25.9

51.8

67

MBT-12-2

12

1/4

36.7

14

28.2

23.8

9.5

20.6

22

25.9

51.8

73.4

MBT-12-3

12

3/বি

36.7

14

28.2

23.8

9.5

20.6

22

25.9

51.8

73.4

MBT-12-4

12

12

36.7

19

33

23.8

9.5

20.6

22

25.9

51.8

73.4

MBT-12-6

12

3/4

38.8

19

36.8

23.8

9.5

28

22

28

56

77.6

MBT-14-3

14

3/বি

39.5

14

29

24.8

11.1

22

27

28.7

57.4

79

MBT-14-4

14

12

39.5

19

34

24.8

11.1

22

27

28.7

57.4

79

MBT-14-6

14

314

38.8

19

36.8

24.8

11.1

28

27

28

56

77.6

MBT-16-3

16

3/বি

39.1

14

29

24.4

12.7

22

27

28.7

57.4

782

MBT-16-4

16

1/2

39.1

19

34

24.4

12.7

22

27

28.7

57.4

782

MBT-16-6

16

3/4

38.4

19

36.8

24.4

12.7

28

27

28

56

76.8

MBT-18-3

18

3/বি

38.8

14

32.5

24.8

15.1

28

30

28

56

77.6

MBT-18-4

18

1/2

38.8

19

36.8

24.8

15.1

28

30

28

56

77.6

MBT-18-6

18

34

38.8

19

36.8

24.8

15.1

28

30

28

56

77.6

MBT-20-4

20

1/2

46

19

41.7

25.5

15.9

34.5

32

35.5

71

92

MBT-20-6

20

34

46

19

41.7

25.5

15.9

34.5

32

35.5

71

92

MBT-22-4

22

12

46

19

41.7

25.5

18.3

34.5

32

35.5

71

92

MBT-22-6

22

3/4

46

19

41.7

25.5

18.3

34.5

32

35.5

71

92

MBT-25-4

25

1/2

49.5

19

41.7

31.7

21.8

34.5

38

36.8

73.6

99

MBT-25-6

25

34

49.5

19

41.7

31.7

21.8

34.5

38

36.8

73.6

99

MBT-25-8

25

1

49.5

22

44.5

31.7

21.8

34.5

38

36.8

73.6

99

MBT-01-1

1/8

1/বি

26.1

10

19.6

14

2.4

12.7

12

18.6

37.2

52.2

MBT-01-2

1/8

1/4

28

14

24

14

2.4

16

12

20.5

41

56

MBT-02-1

1/4

1/8

27.4

10

19.6

15.8

4.8

12.7

14

19.6

39.2

54.8

MBT-02-2

1/4

1/4

292

14

24

15.8

4.8

16

14

21.4

42.8

58.4

MBT-02-3

1/4

3/8

302

14

24.5

15.8

4.8

17.5

14

22.4

44.8

60.4

MBT-02-4

1/4

12

31.7

19

33

15.8

4.8

20.6

14

23.9

47.8

634

MBT-03-1

3/8

1/বি

30.7

14

21

19.6

7.1

16

17

23.1

46.2

61.4

MBT-03-2

3/8

1/4

30.7

14

24

19.6

7.1

16

17

23.1

46.2

61.4

MBT-03-3

3/8

3/বি

30.7

14

24.5

19.6

7.1

17.5

17

23.1

46.2

61.4

MBT-03-4

3/8

12

33.5

19

33

19.6

7.1

20.6

17

25.9

51.8

67

MBT-04-2

1/2

1/4

36.1

14

28.2

23.4

10.4

20.6

22

25.9

51.8

722

MBT-04-3

1/2

3/8

36.1

14

28.2

23.4

10.4

20.6

22

25.9

51.8

722

MBT-04-4

1/2

1/2

36.1

19

33

23.4

10.4

20.6

22

25.9

51.8

722

MBT-04-6

1/2

314

382

19

36.8

23.4

10.4

28

22

28

56

76.4

MBT-05-3

৫/৮

3/বি

39.1

14

29

24.4

12.7

22

27

28.7

57.4

782

MBT-05-4

৫/৮

12

39.1

19

34

24.4

12.7

22

27

28.7

57.4

782

MBT-05-6

৫/৮

34

38.4

19

36.8

24.4

127

28

27

28

56

768

M BT-06-4

3/4

12

38.4

19

36.8

24.4

15.7

28

30

28

56

76.8

MBT-06-6

3/4

314

38.4

19

36.8

24.4

15.7

28

30

28

56

76.8

MBT-08-6

1"

3/4

49.5

19

41.7

31.7

22.4

34.5

38

36.8

73.6

99

এমবিটি-০৮-৮

1"

1"

49.5

22

44.5

31.7

22.4

34.5

38

36.8

73.6

99
