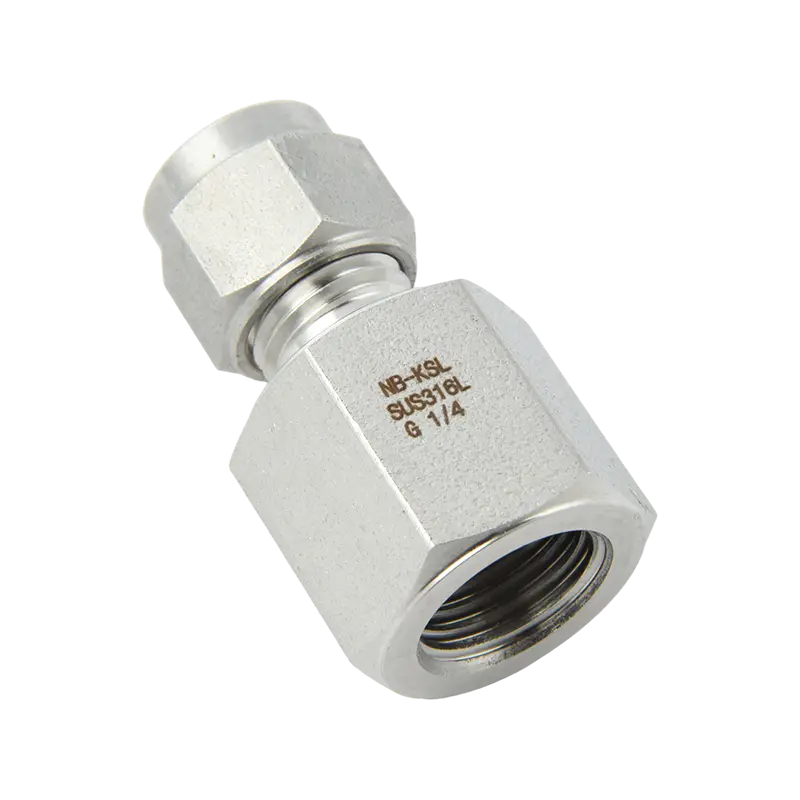

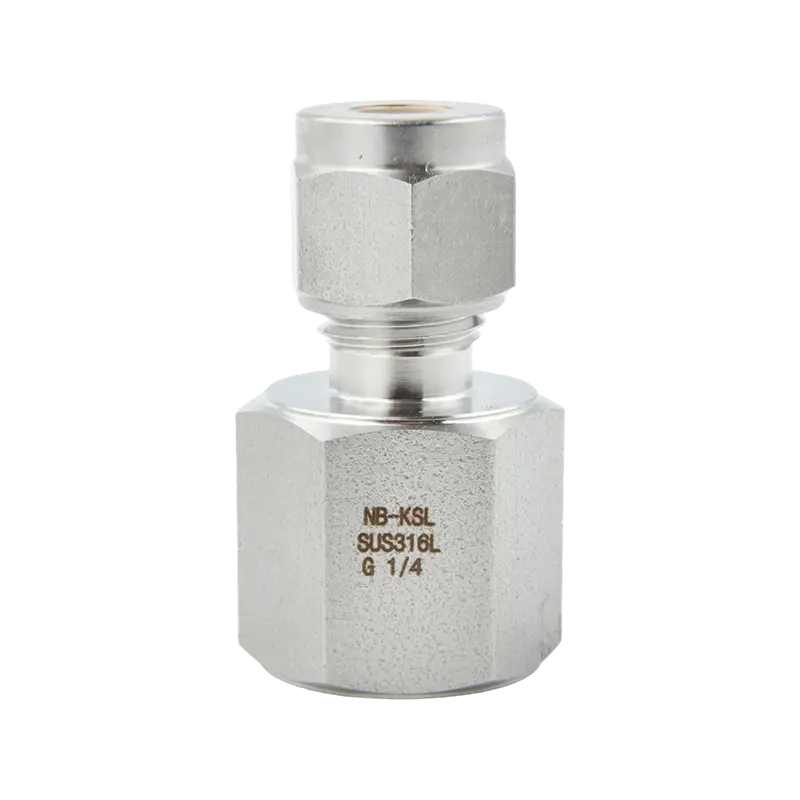

316L স্টেইনলেস স্টীল কম্প্রেশন ফিটিং চাপ গেজ সংযোগকারী

ক্যাটালগ নম্বর

টি টিউব O.D.

R(PF)
FEMALE
পাইপের আকার

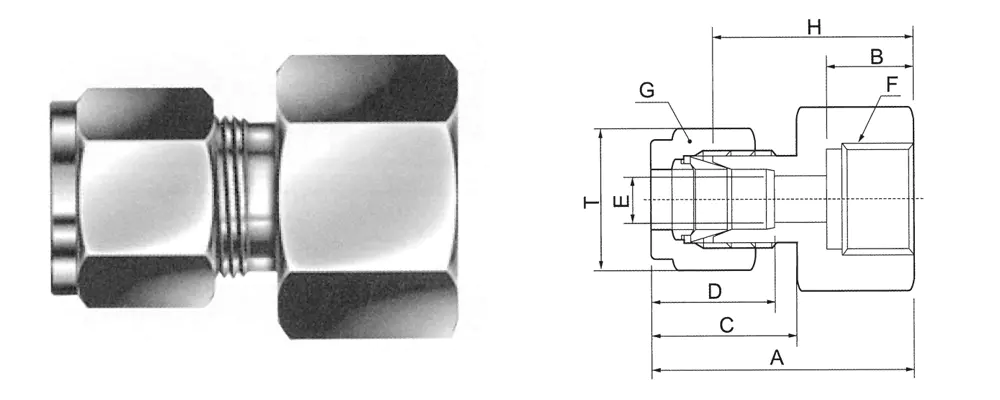

A

B

D

E

F

G

H

FCG-3-2G

3

1/8

34

14

13.5

2.4

19

12

27

FCG-6-2G

6

1/4

36.2

14

15.8

4.8

19

14

28.4

FCG-6-3G

6

3/8

38

15

15.8

4.8

22

14

30.2

FCG-6-4G

6

1/2

40.9

19

15.8

4.8

27

14

33.1

FCG-8-2G

8

1/4

38.7

14

16.7

5.5

19

16

31

FCG-8-3G

8

3/8

38.7

15

16.7

6.4

22

16

31

FCG-8-4G

8

1/2

43.5

20

16.7

6.4

27

16

35.8

FCG-10-2G

10

1/4

39.4

14

19.6

5.5

19

19

31.8

FCG-10-3G

10

3/8

39.4

15

19.6

6.5

22

19

31.8

FCG-10-4G

10

1/2

44.2

19

19.6

7

27

19

36.6

FCG-12-2G

12

1/4

42.6

14

23.8

5.5

22

22

31.8

FCG-12-3G

12

3/8

42.6

15

23.8

6.5

22

22

31.8

FCG-12-4G

12

1/2

48.9

19

23.8

7

27

22

38.1

FCG-20-4G

20

1/2

54.7

19

25.5

7

30

32

44.2

FCG-22-4G

20

1/2

54.7

19

25.5

7

30

32

44.2

FCG-02-1G

1/4

1/8

31.7

10

15.8

4.8

14

14

23.9

FCG-02-2G

1/4

1/4

36.2

14

15.8

4.8

19

14

28.4

FCG-02-3G

1/4

3/8

38

15

15.8

4.8

22

14

30.2

FCG-02-4G

1/4

1/2

40.9

19

15.8

4.8

27

14

33.1

FCG-03-2G

3/8

1/4

39.4

14

19.6

5.5

19

17

31.8

FCG-03-3G

3/8

3/8

44.2

15

19.6

6.5

22

17

36.6

FCG-03-4G

3/8

1/2

44.2

19

19.6

7

27

17

36.6

FCG-04-2G

1/2

1/4

42

14

23.4

5.5

22

22

31.8

FCG-04-3G

1/2

3/8

42

15

23.4

6.5

24

22

31.8

FCG-04-4G

1/2

1/2

48.3

19

23.4

7

27

22

38.1

FC-3-M14*1.5

3

M14x1.5

34

15

13.5

2.4

19

12

27

FC-6-M14*1.5

6

M14x1.5

38

15

15.8

4.8

19

14

30.2

FC-8-M14*1.5

8

M14x1.5

37.8

15

16.7

5.5

19

16

31

FC-10-M14*1.5

10

M14x1.5

39.4

15

19.6

5.5

19

19

31.8

FC-12-M14*1.5

12

M14x1.5

42.6

15

23.8

5.5

22

22

31.8

FC-6-M16*1.5

6

M16x1.5

38

16

15.8

6.5

22

14

30.2

FC-8-M16*1.5

8

M16x1.5

38.7

16

16.7

6.4

22

16

31

FC-10-M16*1.5

10

M16x1.5

39.4

16

19.6

6.4

22

19

31.8

FC-12-M16*1.5

12

M16x1.5

42.6

16

23.8

6.5

22

22

31.8

FC-8-M18*1.5

8

M18x1.5

41.3

16

16.7

6.4

24

16

33.6

FC-12-M18*1.5

12

M18x1.5

44.4

16

23.8

7

24

22

33.6

FC-6-M20*1.5

6

M20x1.5

40.3

16

15.8

4.8

27

14

32.5

FC-8-M20*1.5

8

M20x1.5

41.2

16

16.7

6.4

27

16

33.5

FC-10-M20*1.5

10

M20x1.5

42.1

16

19.6

7

27

19

34.5

FC-12-M20*1.5

12

M20x1.5

45.3

16

23.8

7

27

22

34.5
